| Model NO.: | M6.5-100270-D22HK | Lifting Height: | 2700mm |
|---|---|---|---|
| Lifting Time: | 60s | Transport Package: | Wooden Pallet And Steel Pallet, Wooden Case |
| Specification: | 3000X3000mm | Trademark: | Marco |
| Origin: | China | HS Code: | 84289090 |
| Supply Ability: | 1000 | Warranty: | 12 Months |
| Lift Mechanism: | Scissor Lift | Carrying Capacity: | 2000kg |
| Moves: | Stationary | Driven Type: | Hydraulic |
| Running Mode: | Stationary | Customization: | Available | Customized Request |

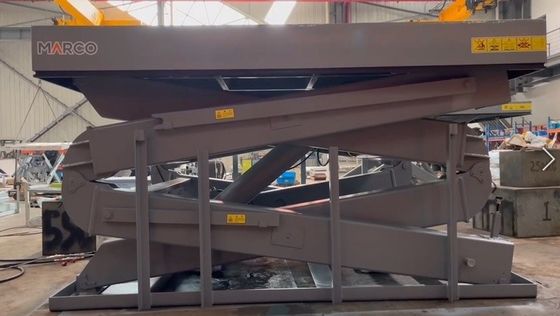

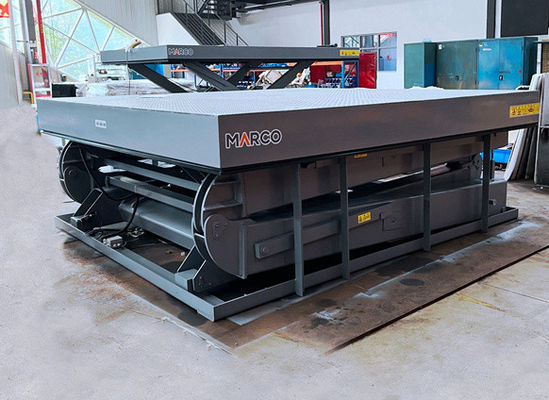

Loading dock lift table is specially designed to withstand the point loads, when the vehicles cross the lift table. It is mainly used on loading / unloading areas, such as warehouse, loading bay. It can used for outdoor.
Different from other type of lift table, Loading dock table has standard factors as below:
Tear platform, oil filled minus side on cylinder, reinforced top frame, service hatch on top for power pack maintenance, Landing pin on base frame, two paint process with thickness 120um.
| Model No. | M6.5-100270-D22HK | Capacity | 10000kg |
| Platform size | 3000X3000mm | Base Frame | 3000x3000mm |
| Min. Height | 1100mm | Lifting Height | 2700mm |
| Model Type | stationary | Lift Time | 60s |
| Color | Grey/green/ blue/others | Product name | refer to product |
| Specifications | Customizable | Application | material handling |
| Power Voltage | 380V 50Hz | Control Voltage | 24V DC |
| Delivery Time | 1 month | Package | exported case |
| Trademark | Marco | HS Code | 84289090 |
| Orgin | Made In China | Production Capacity | 100/month |
| Certificate | ISO9001, CE, ISO3834, | Design standard | EN1570-1-2011 |
