Product Details
Certification: GS, CE, ISO 9001
Payment & Shipping Terms
|
Model NO.:
|
ML-010080- D2
|
Feature:
|
Explosion-Proof
|
Transport Package:
|
Wooden Pallet And Steel Pallet, Wooden Case
|
Specification:
|
1350 X 1050mm
|
Trademark:
|
Marco
|
Origin:
|
China
|
HS Code:
|
84289090
|
Supply Ability:
|
1000
|
Warranty:
|
12 Months
|
Lift Mechanism:
|
Scissor Lift
|
Carrying Capacity:
|
1000kg
|
Moves:
|
Stationary
|
Driven Type:
|
Hydraulic
|
Running Mode:
|
Stationary
|
Customization:
|
Available | Customized Request
|
|
Model NO.:
|
ML-010080- D2
|
|
Feature:
|
Explosion-Proof
|
|
Transport Package:
|
Wooden Pallet And Steel Pallet, Wooden Case
|
|
Specification:
|
1350 X 1050mm
|
|
Trademark:
|
Marco
|
|
Origin:
|
China
|
|
HS Code:
|
84289090
|
|
Supply Ability:
|
1000
|
|
Warranty:
|
12 Months
|
|
Lift Mechanism:
|
Scissor Lift
|
|
Carrying Capacity:
|
1000kg
|
|
Moves:
|
Stationary
|
|
Driven Type:
|
Hydraulic
|
|
Running Mode:
|
Stationary
|
|
Customization:
|
Available | Customized Request
|

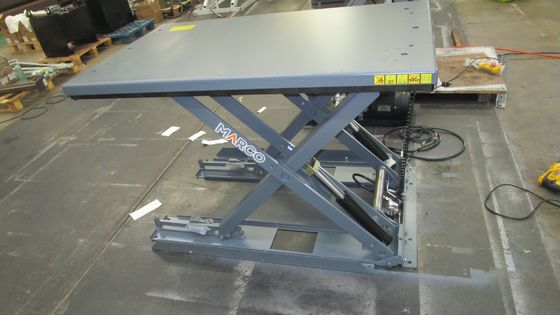

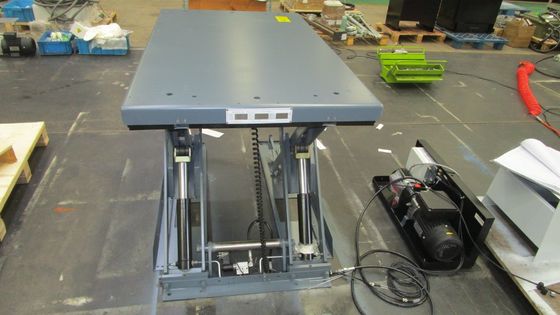

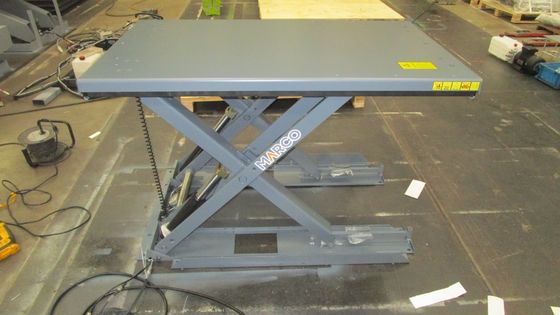

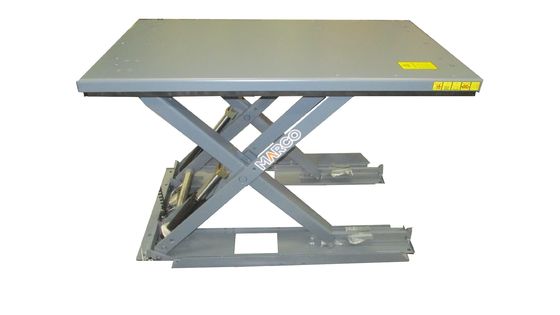

Marco Low-profile lift table adopts flat iron as the structure of scissors arm. The lowest own height is 80mm. It is an economical material processing equipment and can be fixed directly to the ground. Widely used in production line, logistics sorting system and independent standing operating platform outside the production line, to create a human-friendly working environment for workers.
There are three types based on top shape: whole platform, U shape and E shape. The max load capacity is 1000KG.
| Model No. | ML-010080-D2 | Capacity | 1000kg |
| Platform size | 1350x1050mm | Base Frame | 1275x1070mm |
| Min. Height | 80mm | Lifting Height | 800mm |
| Model Type | stationary | Lift Time | 22s |
| Color | Grey/green/ blue/others | Product name | refer to product |
| Specifications | Customizable | Application | material handling |
| Power Voltage | 380V 50Hz | Control Voltage | 24V DC |
| Delivery Time | 1 month | Package | exported case |
| Trademark | Marco | HS Code | 84289090 |
| Orgin | Made In China | Production Capacity | 100/month |
| Certificate | ISO9001, CE, ISO3834, | Design standard | EN1570-1-2011 |
