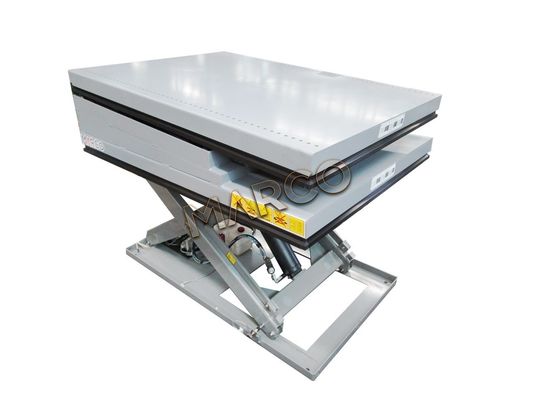

Tilt table can be tilted up along the mounting surface on top platform within angle range 0° -90°. The tilt platform can be stop at any angle in range 0° -90° and angles 30°, 45° and 90° are used commonly in application. Tilt platform is driven by cylinder and power pack and can be combined with lifting function. Its main function is to put the goods on the most suitable position in case and convenient to operate for workers, reduce labor intensity. It is mainly used in material sorting and packaging system. It can make material handling with ergonomics.
| Model No. | M1-005061-D1&MT-005008-D1 | Capacity | 500kg |
| Platform size | 1350x1000mm | Base Frame | 1350x790mm |
| Min. Height | 469mm | Lifting Height | 606mm |
| Model Type | stationary | Lift Time | 14s |
| Color | Grey/green/ blue/others | Product name | refer to product |
| Specifications | Customizable | Application | material handling |
| Power Voltage | 380V 50Hz | Control Voltage | 24V DC |
| Delivery Time | 1 month | Package | exported case |
| Trademark | Marco | HS Code | 84289090 |
| Orgin | Made In China | Production Capacity | 100/month |
| Certificate | ISO9001, CE, ISO3834, | Design standard | EN1570-1-2011 |
