1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate

Product Details

Certification: GS, CE, ISO 9001

Payment & Shipping Terms

Chat now
Highlight:
Model NO.:
M3-020220-D22H
Feature:
Explosion-Proof
Transport Package:
Wooden Pallet And Steel Pallet, Wooden Case
Specification:
2450X1130mm
Trademark:
Marco
Origin:
China
HS Code:
84289090
Supply Ability:
1000
Warranty:
12 Months
Lift Mechanism:
Scissor Lift
Carrying Capacity:
2000kg
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
Model NO.:
M3-020220-D22H
Feature:
Explosion-Proof
Transport Package:
Wooden Pallet And Steel Pallet, Wooden Case
Specification:
2450X1130mm
Trademark:
Marco
Origin:
China
HS Code:
84289090
Supply Ability:
1000
Warranty:
12 Months
Lift Mechanism:
Scissor Lift
Carrying Capacity:
2000kg
Moves:
Stationary
Driven Type:
Hydraulic
Running Mode:
Stationary
Customization:
Available | Customized Request
1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate

Product Description

Single scissor lift has one set of single scissor. It is the basic model of the lift table range with multi-purpose range of applications. This kind of lift table are normally used to provide solution on handling difference in levels, such as production side, package area, logistic field and private elevator, etc..

Product Parameters

Model No. M3-020220-D22H Capacity 2000kg
Platform size 2450X1130mm Base Frame 2450X1130mm
Min. Height 500mm Lifting Height 2200mm
Model Type stationary Lift Time 30s
Color  Grey/green/ blue/others Product name refer to product
Specifications Customizable Application material handling
Power Voltage  380V 50Hz Control Voltage 24V DC
Delivery Time 1 month Package  exported case
Trademark Marco HS Code 84289090
Orgin Made In China Production Capacity 100/month
Certificate ISO9001, CE, ISO3834, Design standard EN1570-1-2011

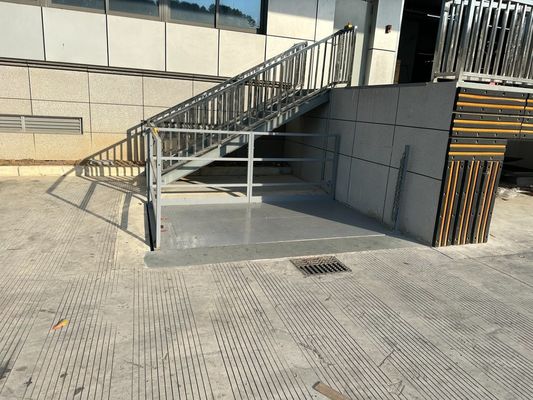

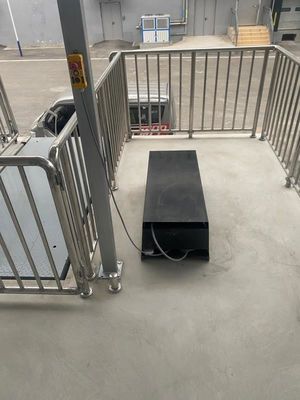

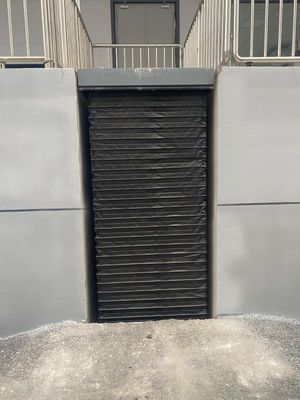

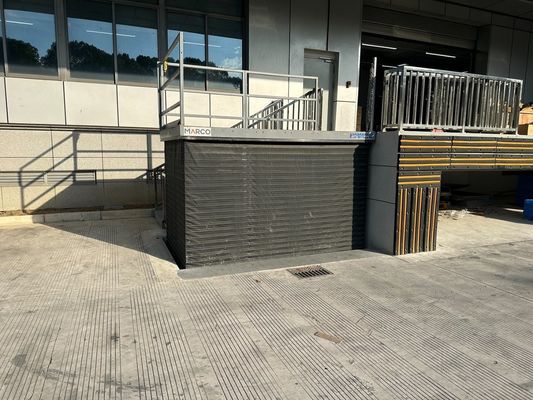

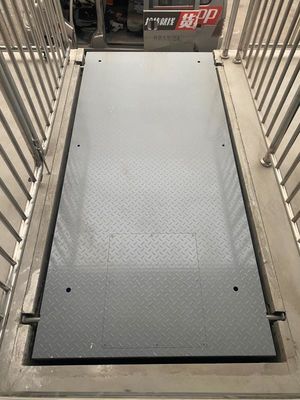

Detailed Photos

1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 0
1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 1
1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 2

Company Profile

1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 3

Our Workshop

1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 4

Certifications

1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 5

Exhibition

1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 6

Packaging & Shipping

1ton Electric Hydraulic Scissor Lift Table with Stationary Design and CE Certificate 7
