| Lifting Height: | 4700mm | Lifting Time: | 120s |
|---|---|---|---|
| Transport Package: | Wooden Pallet And Steel Pallet, Wooden Case | Specification: | 3200mm |
| Trademark: | Marco | Origin: | China |
| HS Code: | 84289090 | Supply Ability: | 1000 |
| Warranty: | 12 Months | Lift Mechanism: | Scissor Lift |
| Carrying Capacity: | 10000kg | Moves: | Stationary |
| Driven Type: | Hydraulic | Running Mode: | Stationary |
| Customization: | Available | Customized Request |

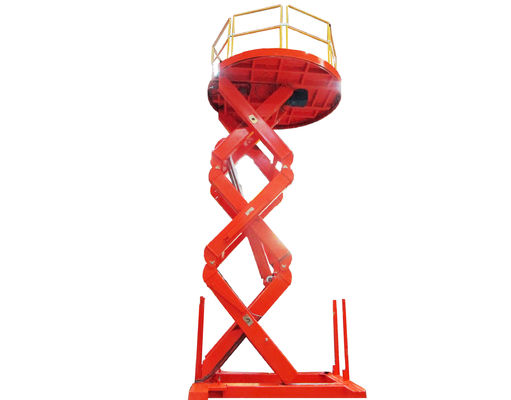

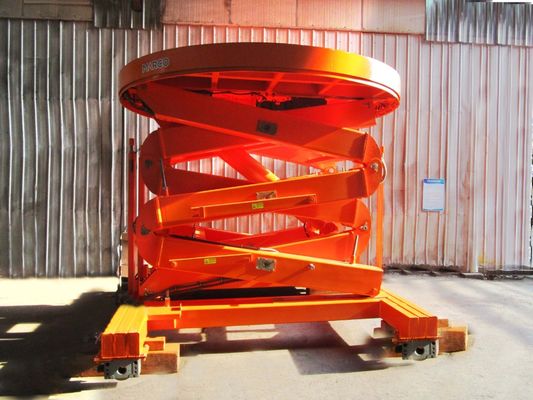

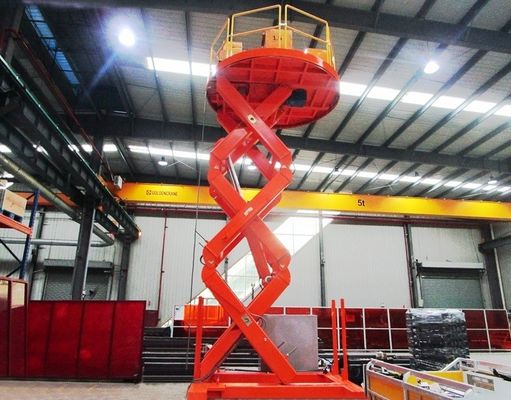

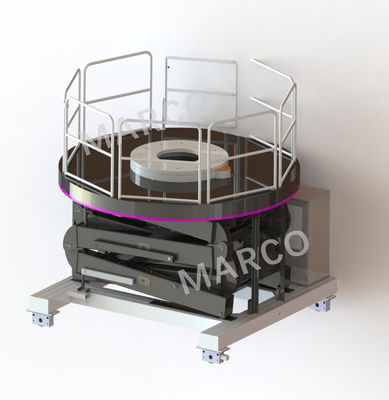

High lift table is designed with multiple set of vertically mounted scissors to achieve higher stroke with shorter platform length. Usually installed in space is limited, lifting height is higher.
Most high lift table are used for Goods Elevator, Pallet tracker, disable elevator. Considering the safety and stability on structure, Marco high lift table has Max. 4 layers as 4H on model description.
| Model No. | M6.5-100470-D23H | Capacity | 10000kg |
| Platform size | 3200mm | Base Frame | 3002x2982mm |
| Min. Height | 2250mm | Lifting Height | 4700mm |
| Model Type | stationary | Lift Time | 120s |
| Color | Grey/green/ blue/others | Product name | refer to product |
| Specifications | Customizable | Application | material handling |
| Power Voltage | 380V 50Hz | Control Voltage | 24V DC |
| Delivery Time | 1 month | Package | exported case |
| Trademark | Marco | HS Code | 84289090 |
| Orgin | Made In China | Production Capacity | 100/month |
| Certificate | ISO9001, CE, ISO3834, | Design standard | EN1570-1-2011 |
