Product Details
Certification: CE, ISO 9001
Payment & Shipping Terms
|
Model NO.:
|
M1-006090-D1-MT
|
Product Name:
|
Pallet Hydraulic Scissor Lift Table
|
Capacity:
|
600kg
|
Lift Stroke:
|
900mm
|
Close Height:
|
470mm
|
Transport Package:
|
Wooden Pallet
|
Trademark:
|
Marco
|
Origin:
|
Ningbo
|
HS Code:
|
8428909090
|
Supply Ability:
|
1200pieces/Year
|
Application:
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
|
Lift Mechanism:
|
Scissor Lift
|
Carrying Capacity:
|
Special Weight Level
|
Moves:
|
Stationary
|
Driven Type:
|
Hydraulic
|
Running Mode:
|
Stationary
|
Customization:
|
Available | Customized Request
|
|
Model NO.:
|
M1-006090-D1-MT
|
|
Product Name:
|
Pallet Hydraulic Scissor Lift Table
|
|
Capacity:
|
600kg
|
|
Lift Stroke:
|
900mm
|
|
Close Height:
|
470mm
|
|
Transport Package:
|
Wooden Pallet
|
|
Trademark:
|
Marco
|
|
Origin:
|
Ningbo
|
|
HS Code:
|
8428909090
|
|
Supply Ability:
|
1200pieces/Year
|
|
Application:
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
|
|
Lift Mechanism:
|
Scissor Lift
|
|
Carrying Capacity:
|
Special Weight Level
|
|
Moves:
|
Stationary
|
|
Driven Type:
|
Hydraulic
|
|
Running Mode:
|
Stationary
|
|
Customization:
|
Available | Customized Request
|

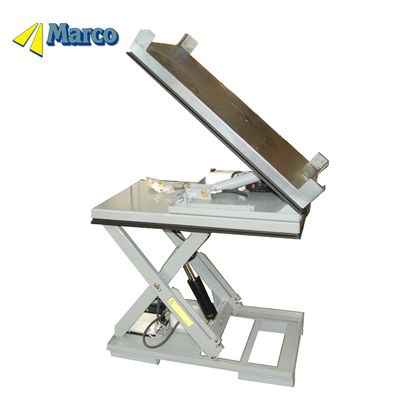

Marco Customsized 40 Degree Tilt Pallet Hydraulic Scissor Lift Table
| Mechanical data | |
| Capacity | 600kg |
| Platform size | 1350x800mm (LxW) |
| Lift stroke | 900mm |
| Lifting time | 20s |
| Closed height | 470mm |
Other
A tilt table designed to tilt 40degrees. On the platform there's support for an eurpallet. This table is also equipped with a pallet truck frame for easy access with a truck.
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
