Product Details
Certification: CE, ISO 9001
Payment & Shipping Terms
|
Model NO.:
|
M7-030543-D2 + M3, 5-030112-D4/2L
|
Product Name:
|
Stationary Stage Hydraulic Scissor Lift Platform
|
Capacity:
|
3000kg
|
Lift Stroke:
|
6550mm
|
Close Height:
|
1700mm
|
Transport Package:
|
Wooden Pallet
|
Trademark:
|
Marco
|
Origin:
|
Ningbo
|
HS Code:
|
8428909090
|
Supply Ability:
|
1200pieces/Year
|
Application:
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
|
Lift Mechanism:
|
Scissor Lift
|
Carrying Capacity:
|
Special Weight Level
|
Moves:
|
Stationary
|
Driven Type:
|
Hydraulic
|
Running Mode:
|
Stationary
|
Customization:
|
Available | Customized Request
|
|
Model NO.:
|
M7-030543-D2 + M3, 5-030112-D4/2L
|
|
Product Name:
|
Stationary Stage Hydraulic Scissor Lift Platform
|
|
Capacity:
|
3000kg
|
|
Lift Stroke:
|
6550mm
|
|
Close Height:
|
1700mm
|
|
Transport Package:
|
Wooden Pallet
|
|
Trademark:
|
Marco
|
|
Origin:
|
Ningbo
|
|
HS Code:
|
8428909090
|
|
Supply Ability:
|
1200pieces/Year
|
|
Application:
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
|
|
Lift Mechanism:
|
Scissor Lift
|
|
Carrying Capacity:
|
Special Weight Level
|
|
Moves:
|
Stationary
|
|
Driven Type:
|
Hydraulic
|
|
Running Mode:
|
Stationary
|
|
Customization:
|
Available | Customized Request
|

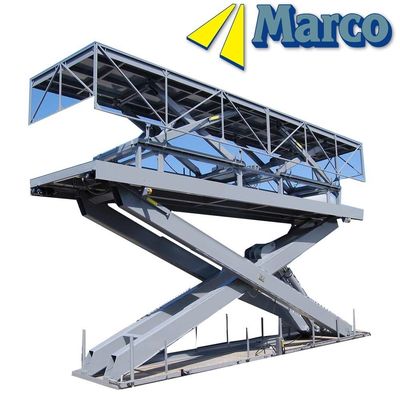

Stationary Stage Hydraulic Scissor Lift Platform for Theatres Performances
| Mechanical data | |
| Capacity | 3000 kg |
| Platform size | 9490 / 8895 x 1955 mm |
| Frame size | 8300 x 1560 mm |
| Lift stroke | 6550 mm (5430 / 1120) |
| Lifting time | 151 s (122 / 29) |
| Closed height | 1700 mm (850 / 340 + 510) |
| Weight | 11110 kg (7920 + 3190) |
All Marcolift standard lift tables are manufactured with high quality components to enhance reliability, durability and safety in operation.
| Pump | Bucher | Motor | Hoyer Denmark, protection IP55 |
| Control Panel | Marco standard control box | Sealing | Sweden, SKF |
| Cylinder | Marco, with rapture valve and damping | Limit switch | USA, Suns |
| Safety frame | Aluminum with limit switch | Scissor arm | Q345B, profile steel |
| Paint | Finland, Tikkurila | Hydraulic hose | USA, Eaton |
Marco Additional Component
In addition to the standard equipment of lift tables, it is possible to provide Marcolift lift table with a range of accessories to enhance safety, versatility, application and to simply handling.
