Product Details
Certification: CE
Payment & Shipping Terms
|
Model NO.:
|
M4-030230-D2/2H
|
Feature:
|
Insulating
|
Transport Package:
|
Wooden Package
|
Specification:
|
CE
|
Trademark:
|
Marco
|
Origin:
|
Ningb, China
|
HS Code:
|
8428909090
|
Application:
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
|
Lift Mechanism:
|
Scissor Lift
|
Carrying Capacity:
|
Weight Level
|
Moves:
|
Stationary
|
Driven Type:
|
Hydraulic
|
Running Mode:
|
Stationary
|
Customization:
|
Available | Customized Request
|
|
Model NO.:
|
M4-030230-D2/2H
|
|
Feature:
|
Insulating
|
|
Transport Package:
|
Wooden Package
|
|
Specification:
|
CE
|
|
Trademark:
|
Marco
|
|
Origin:
|
Ningb, China
|
|
HS Code:
|
8428909090
|
|
Application:
|
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
|
|
Lift Mechanism:
|
Scissor Lift
|
|
Carrying Capacity:
|
Weight Level
|
|
Moves:
|
Stationary
|
|
Driven Type:
|
Hydraulic
|
|
Running Mode:
|
Stationary
|
|
Customization:
|
Available | Customized Request
|

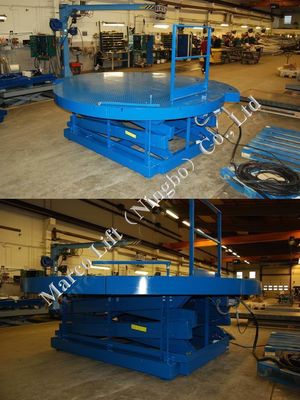

Table type: M4-030230-D2/2H
Mechanical data:
Capacity 3000kg
Platform size Ø3100 or Ø3600mm
Frame size 2500x1640mm (LxW)
Lift stroke 2300mm
Lifting time 41s
Closed height 1150±50mm (910+290)
Weight 2663kg
Other
This table will be used to brick up a furnace. It's operated by a built-in foot control.The table can be levelled with an adjustable foot in each corner of the frame and by removing segments on the outside of table, the diameter can be changed.
